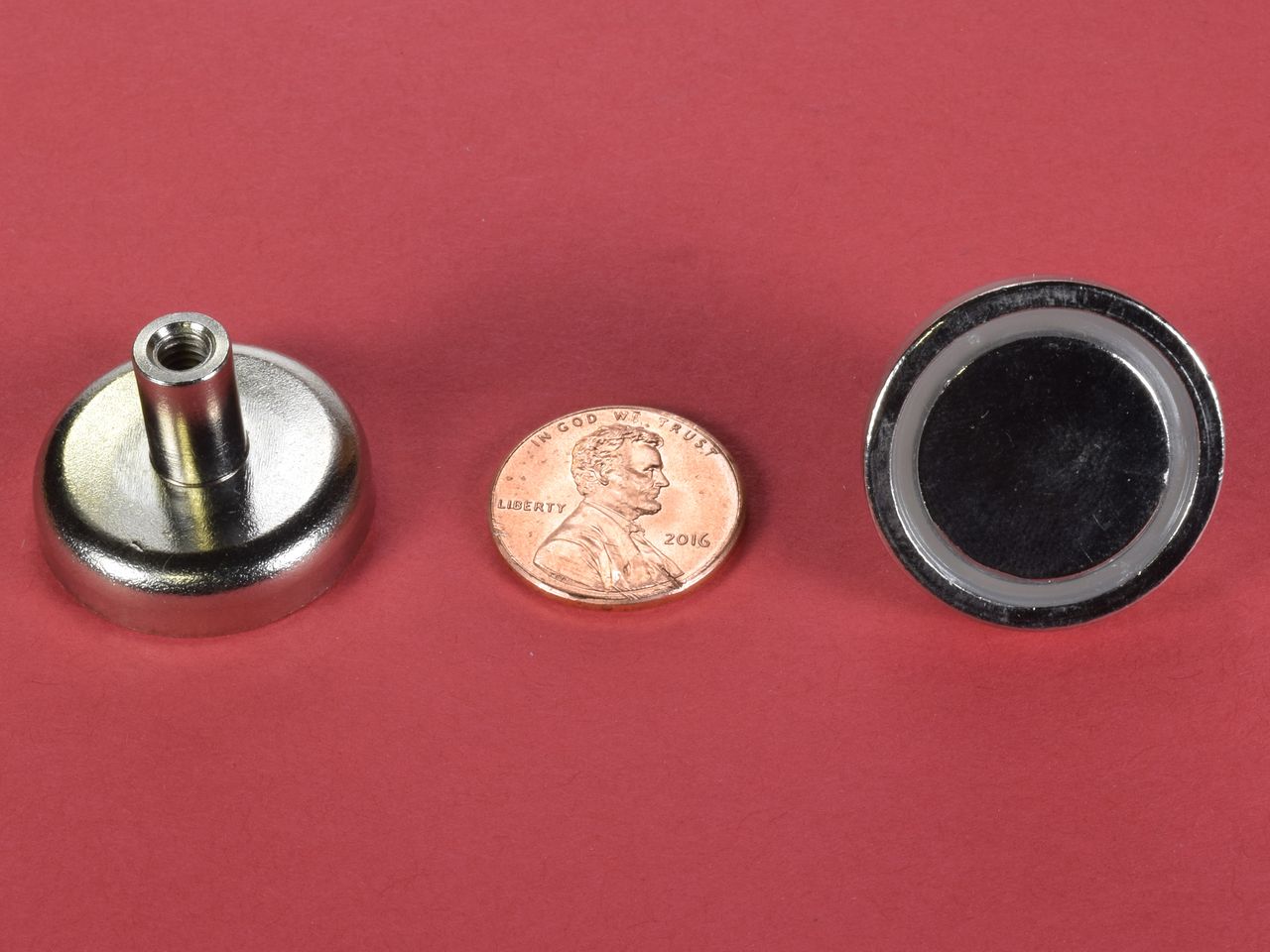

MMS-D-X0 - Neodymium Female Stud Mounting Magnet

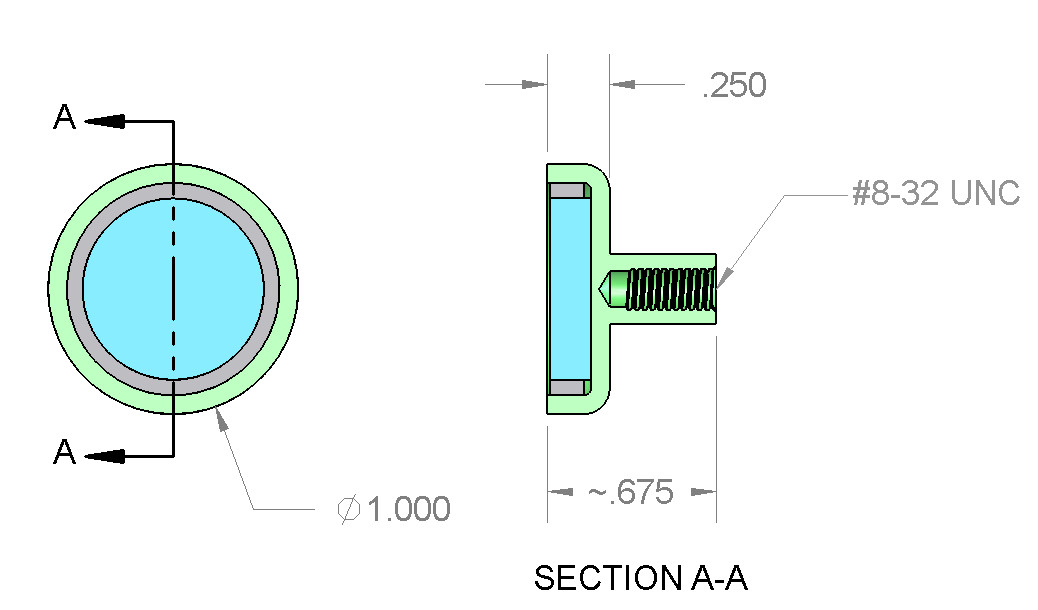

• Dimensions:
      Diameter = 1" (1.00")
      Threaded Female Stud = #8-32 UNC 2B
      Height = 1/4" (0.250")
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.847 oz. (24.02 g)
• Pull Force: 40.64 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The MMS-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.
